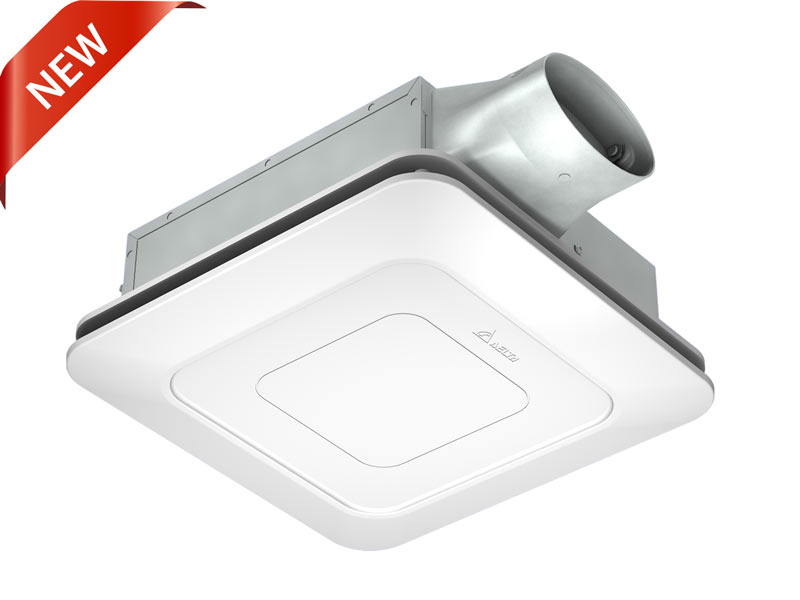

BreezSlim SLM50‑100 Ventilation Fan – Adjustable 50/80/100 CFM High Speed Performance
(coming soon!)
Home / Products / Slim Series / SLM50-100

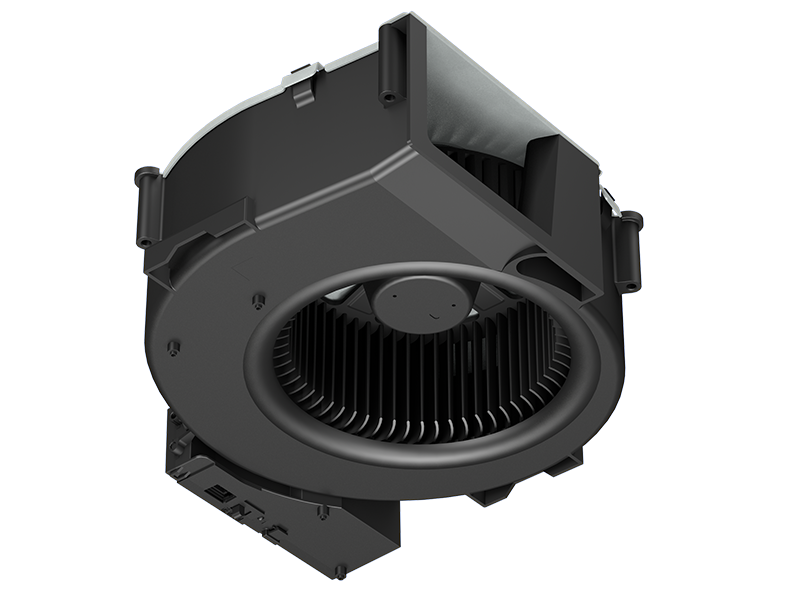

- ENERGY STAR® qualified with innovative brushless DC motor technology

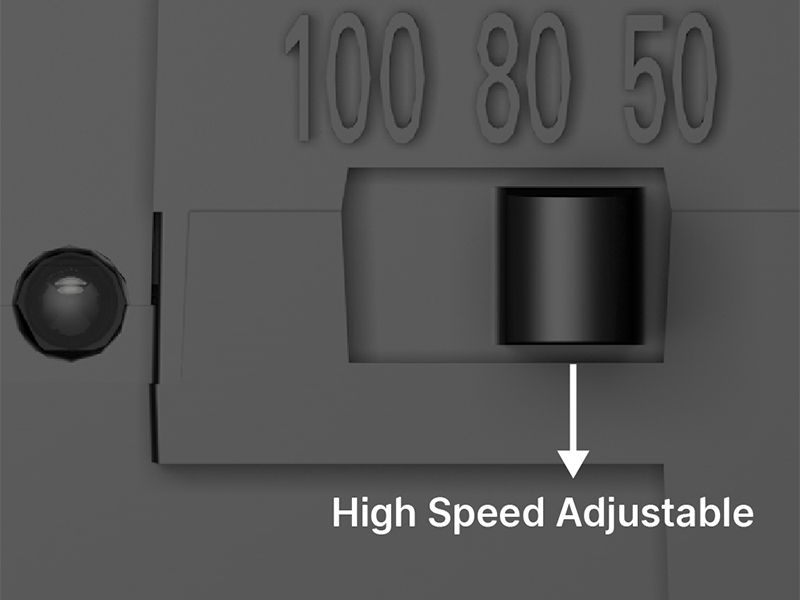

- Full speed adjustable, 50CFM, 80CFM, or 100CFM
- Perfectly quiet operation 0.9 sones at 100 CFM @ 0.1"SP
- Constant airflow can hold up to 0.4"SP of 100 CFM
- Energy efficiency is 8.0 CFM/Watt at 100CFM

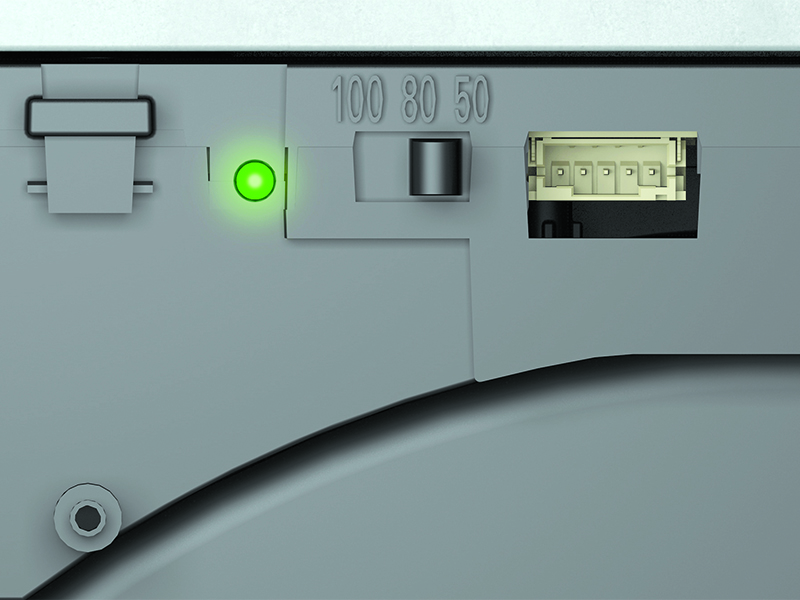

- Optional built-in controls for dual-speed/humidity sensor with continuous low-speed operation
- UL approved for ceiling and wall mount installation
- Flat cover enhances the modern aesthetic

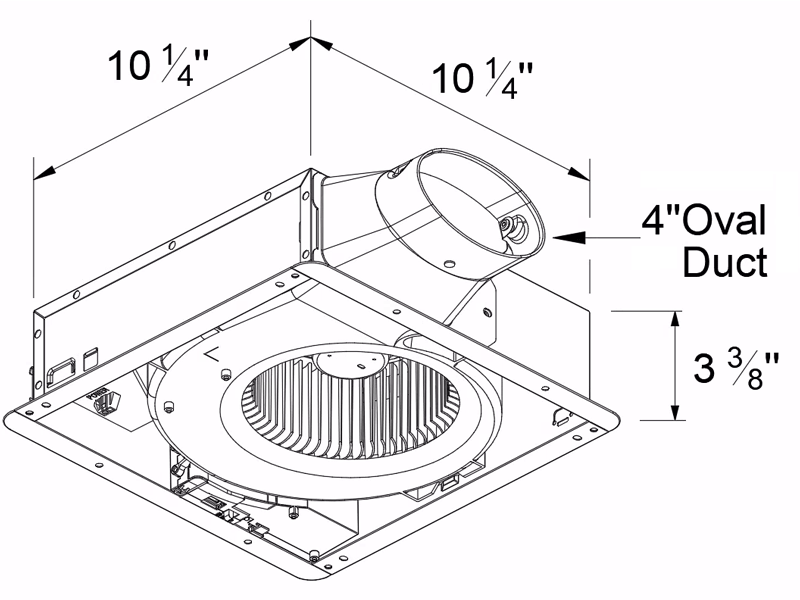

- Low profile housing with a 3-3/8" depth fits in a 4" wall
- Duct installation available in two ways: inside-out or outside-in
- 13W Dimmable LED light output 850 lumens, 3000K and 90CRI, <1W night light (SLM50-100LED only)
- Annual energy cost for 24/7 operation is approximately $6.21* (50 CFM), $9.80* (80 FM), $14.94* (100 CFM) *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary.
Super Low Profile. Super Low Energy Consumption.
The ventilation fan shall be the Delta Breez model SLM50-100, qualified under ENERGY STAR® and equipped with a high‑efficiency brushless DC motor designed for continuous operation for a minimum of 70,000 hours. The fan shall deliver an airflow of 100 CFM with a maximum sound level of 0.9 sones at 0.1" static pressure, as certified by the Home Ventilating Institute (HVI). Power consumption shall not exceed 12.5 watts, providing an efficiency rating of 8.0 CFM/W at 0.1" static pressure. The unit shall include motor lock protection and feature self‑compensating motor speed to maintain the specified airflow under varying static pressure conditions.
SLM50-100 - SLM50-100 CFM Exhaust Fan
| Fan Speed | Full Speed | ||||||||
| Static Pressure (inches w.g.) | 0.1 | 0.25 | 0.375 | 0.1 | 0.25 | 0.375 | 0.1 | 0.25 | 0.375 |
| Air Flow (CFM) | 50 | 50 | 50 | 80 | 80 | 80 | 100 | 100 | 100 |
| Sones | <0.3 | 0.7 | - | 0.4 | 1.0 | - | 0.9 | 1.4 | - |
| Power Consumption (Watts) | 5.2 | 8.2 | 12.0 | 8.2 | 12.8 | 17.2 | 12.5 | 17.4 | 22.1 |
| Energy Efficiency (CFM/Watts) | 9.6 | 6.1 | 4.2 | 9.7 | 6.2 | 4.6 | 8.0 | 5.7 | 4.5 |
| Current (Amps) | 0.6 Max | ||||||||
| Power Rating (V/Hz) | 120 / 60 | ||||||||
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
