Introducing the VEB120S-R: Smarter Ventilation for Healthier Living.
Upgrade your indoor air quality with the next-generation ERV - the VEB120S-R. Designed for modern homes and buildings, this enhanced model builds on the trusted performance of the VEB120S, while delivering smarter controls, easier installation, and better compliance with today’s energy standards.
Key similarities: Both models VEB120S-R and VEB120S offer powerful, energy-efficient ventilation with features like:
Make the Smart Switch
The VEB120S-R is more than an upgrade — it’s a smarter, more efficient way to ventilate. Whether you're building new or retrofitting, this model delivers the performance and flexibility today’s market demands.
Ready to learn more or place an order? Contact Us.
Key similarities: Both models VEB120S-R and VEB120S offer powerful, energy-efficient ventilation with features like:
- Ultra Slim and Light Weight: 8⅝” depth (219 mm) and 36 lbs (16 kg) makes for easy installation in tight spaces
- Airflow Range: 30–120 CFM with auto-balancing ECM motor
- High-Efficiency Filtration: MERV13 filter for cleaner, healthier air
- Quiet Operation: Whisper-quiet performance with motorized dampers
- Flexible Mounting: Wall, attic, or chain mount options
- Digital Controller: Customize airflow and runtime with ease
-
While the VEB120S-R retains the trusted performance of the original model, it introduces refinements in usability and integration, including:
- Suitable for symmetrical (mirror) installations: For a mirror building install Delta offers the VEB120S-R ERV with up to 77% SRE and standard features such as MERV13 filter, dual motorized dampers to reduce building leakage, energy efficient ECM motors and easy installation due to smaller size and lighter weight
- Enhanced Control Panel Integration: The VEB120S-R offers improved wiring and control panel setup, making it easier to install and configure, especially in smart home or HVAC-integrated systems.
- Improved Installation Flexibility: The updated manual and mounting hardware simplify ceiling and chain-mounted installations, reducing labor time.
- Optimized Runtime Programming: The VEB120S-R includes more intuitive runtime and boost mode settings, allowing users to fine-tune ventilation cycles for energy savings and comfort.
- Updated Compliance Features: Designed to better align with California Title 24 and other regional energy codes, making it a future-proof choice for builders and contractors.
Market Impact & Benefits: The VEB120S-R is designed to meet the evolving needs of:
- Homeowners seeking smarter, healthier indoor air
- Contractors looking for easier installation and code compliance
- Builders aiming to meet green building standards and energy codes
Make the Smart Switch
The VEB120S-R is more than an upgrade — it’s a smarter, more efficient way to ventilate. Whether you're building new or retrofitting, this model delivers the performance and flexibility today’s market demands.
Ready to learn more or place an order? Contact Us.
While the original VEB120S remains a reliable, high-performance ERV ideal for straightforward ventilation needs, the VEB120S-R features smarter controls, easier installation, and better energy code compliance.
Download Spec Sheet
Features:
Download Spec Sheet
- Energy Efficiency: Up to 75% sensible heat recovery in heating season

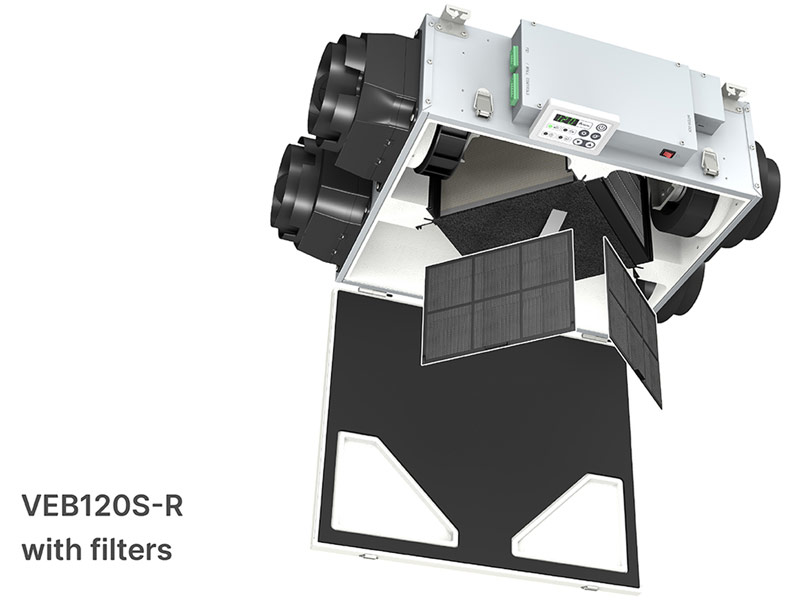

- Healthier air: MERV13 filter included
- Built-in FID (Fault Indicator Display): Alerts for filter maintenance
- Motorized Dampers: Create a better seal against air leakage into the house when ERV is off
- Better recovery efficiency in both heating and cooling season

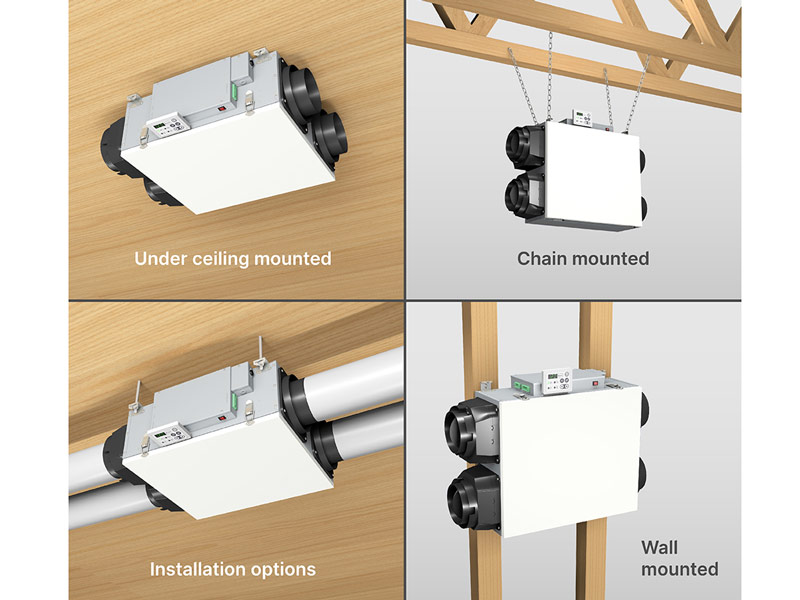

- Three installation possibilities: wall mount, attic mount, or chain mount
- Can be Interlocked with HVAC system
- Run time setting function
- Multi-speeds offer continuous ventilation

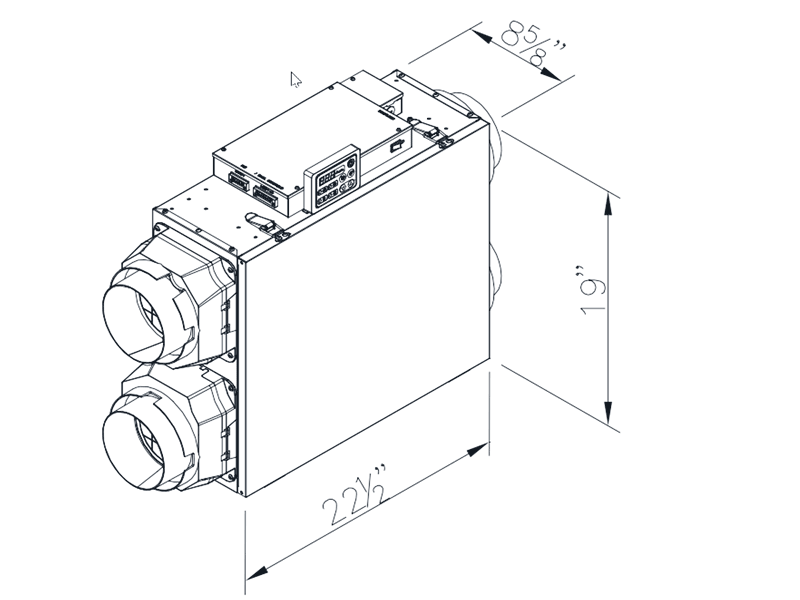

| BreezFresh ERV | Model No. VEB120S-R |
| Length | 22½” (572 mm) |
| Width | 19” (485 mm) |
| Height | 8⅝” (219 mm) |
| Weight | 36 lbs (16.3 kg) |
| Operating temperature | -22oF to 104oF (-30°C to 40°C) |

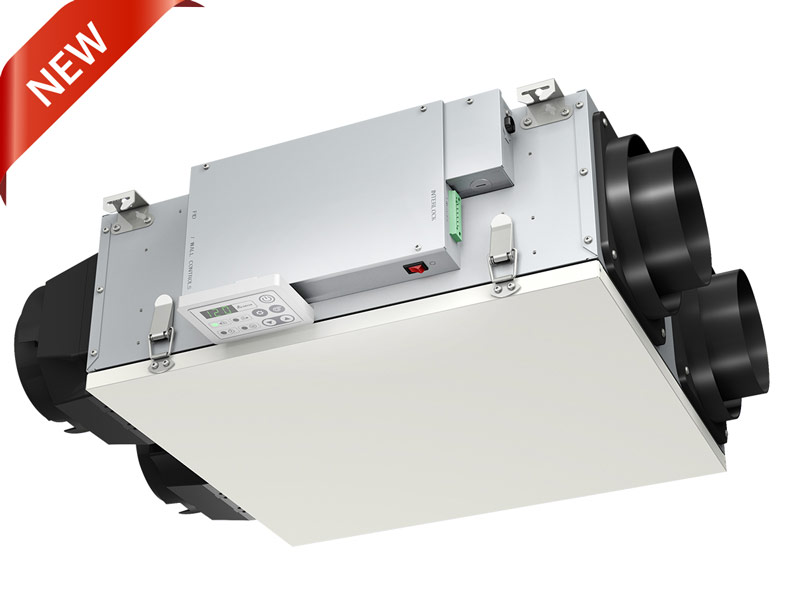

VEB120S-R Delta Energy Recovery Ventilator
Airflow Performance
| Inch A.q. (Pa) | 0.2 (50) | 0.4 (100) | 0.6 (150) | 0.8 (200) | 1.0 (250) |
| Net supply airflow CFM (L/s) | 131 (62) | 119 (56) | 102 (48) | 83 (39) | 64 (30) |
| Engineering design and specifications to change without notice. | |||||
Thermal Performance
| Temp Mode | Supply Temp (Outside) | Net Airflow | Sensible Recovery Efficiency | Adjusted Sensible Recovery Efficiency | Total Recovery Efficiency | Adjusted Total Recovery Efficiency | Latent Recovery / Moisture Transfer | Power Consumed |
| Heating mode | 32oF (0oC) | 36 CFM (17 L/s) | 77% | 81% | - | - | 0.65 | 22W |
| Heating mode | 32oF (0oC) | 64 CFM (30 L/s) | 75% | 79% | - | - | 0.54 | 37W |
| Heating mode | 32oF (0oC) | 106 CFM (50 L/s)) | 70 % | 75% | - | - | 0.44 | 75W |
| Heating mode | -13oF (-25oC) | 36 CFM (17 L/s) | 57% | 59% | - | - | 0.51 | 22W |
| Cooling mode | 95oF (35oC) | 36 CFM (17 L/s) | - | - | 75% | 78% | 0.81 | 22W |
| Cooling mode | 95oF (35oC) | 64 CFM (30 L/s) | - | - | 62% | 65% | 0.64 | 42W |
| Engineering design and specifications to change without notice. | ||||||||
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
