BreezSlim SLM50-100D Ventilation Fan 50/80/100 CFM Fan with Dual Speed and High Speed Adjustable (coming soon!)

Home / Products / Slim Series / SLM50-100D

SLM50-100D
  • SLM50-100D
  • SLM50-100D grille

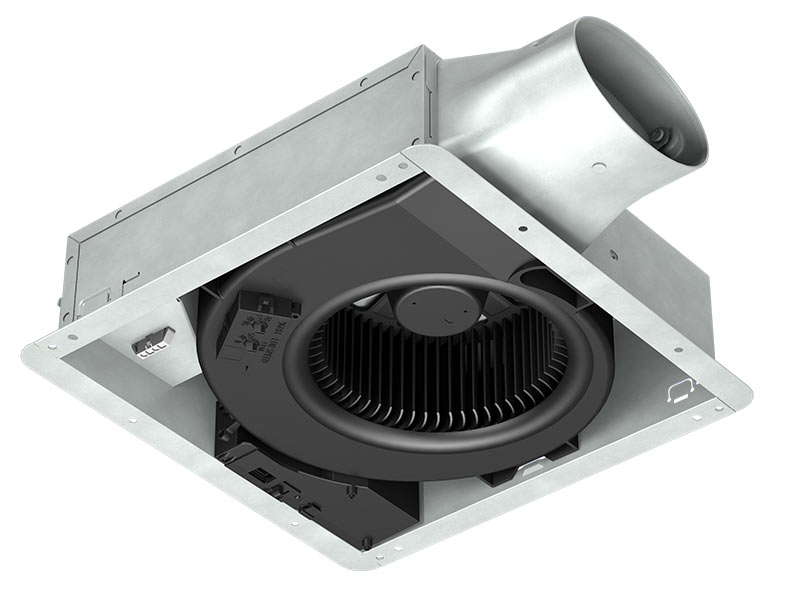

  • SLM50-100D housing and motor
  • SLM50-100D dual function
  • SLM50-100D amber light
  • SLM50-100D green light
  • SLM50-100D dimension

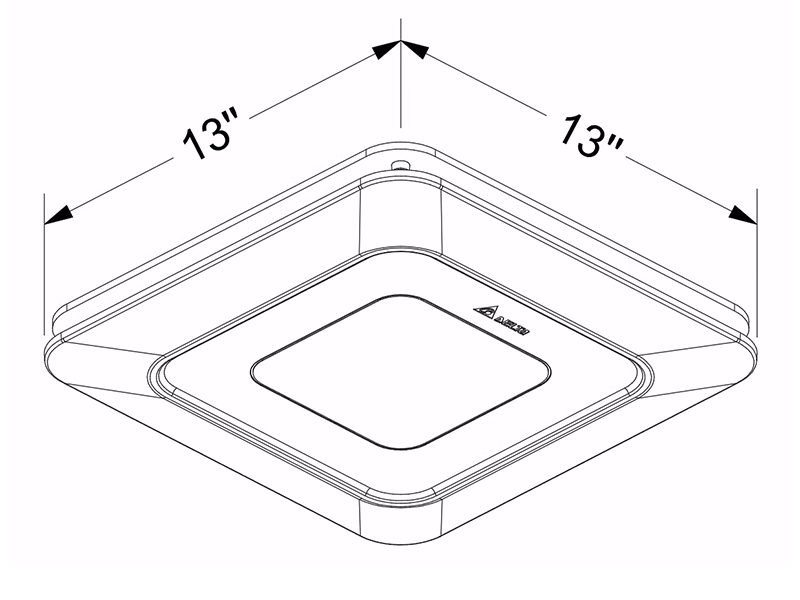

  • SLM50-100D grille dimension


  • energyefficient logo
  • HVI logo
  • UL logo
  • CA24 logo
  • ASI logo
  • the quietest fan, low noise


slim
  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Full speed adjustable airflow: 50 CFM, 80 CFM, or 100 CFM
  • Ultra quiet operation: 0.9 sones at 100 CFM @ 0.1" SP
  • Maintains constant airflow up to 100 CFM @ 0.4" SP
  • High energy efficiency: 8.0 CFM/Watt at 100 CFM

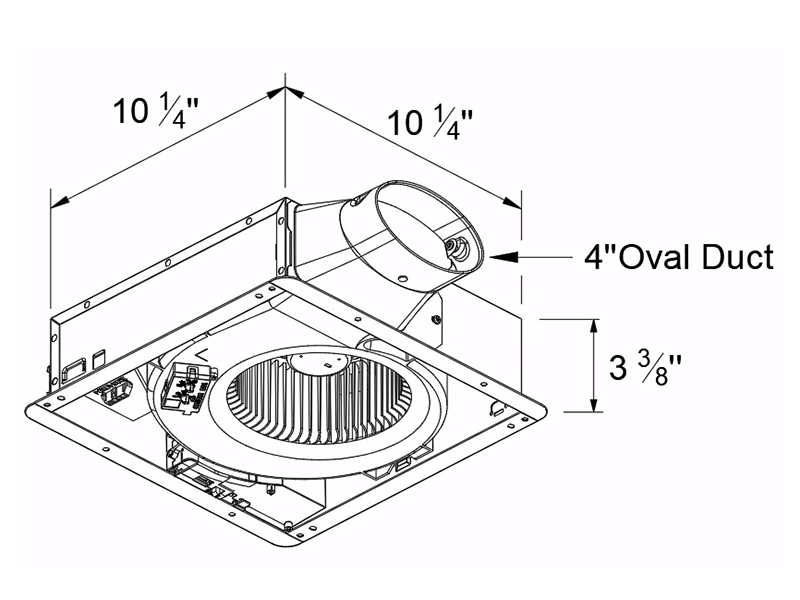

  • Low profile housing (3-3/8" depth) fits in a 2”x4” wall
  • UL approved for ceiling and wall-mount installations
  • Flat cover provides a clean, modern aesthetic
  • Two Duct adapter installation options available: inside-out or outside-in

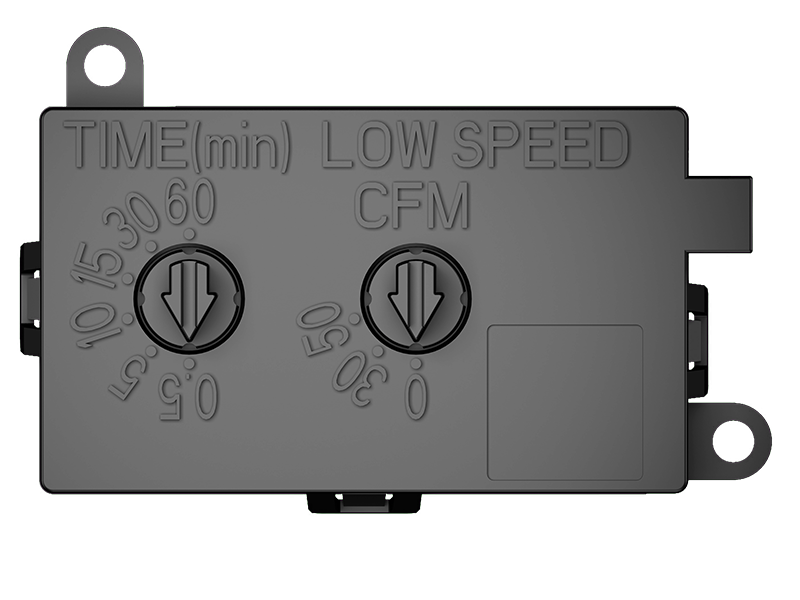

  • Supports full speed mode or continuous low speed mode via manual switch
  • For continuous low-speed mode, the fan operates continuously at a user-preset airflow level (0, 30, or 50 CFM)
  • Delay-time preset options: 0.5, 5, 10, 15, 30, or 60 minutes

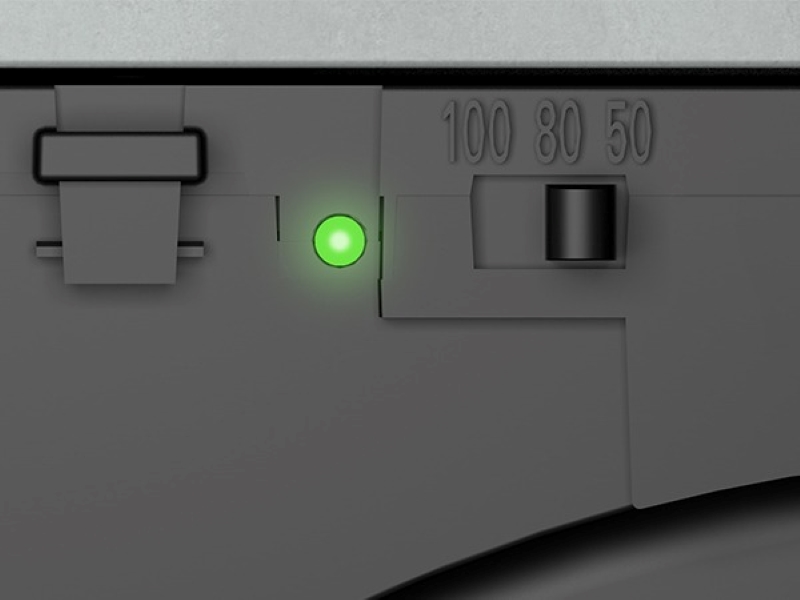

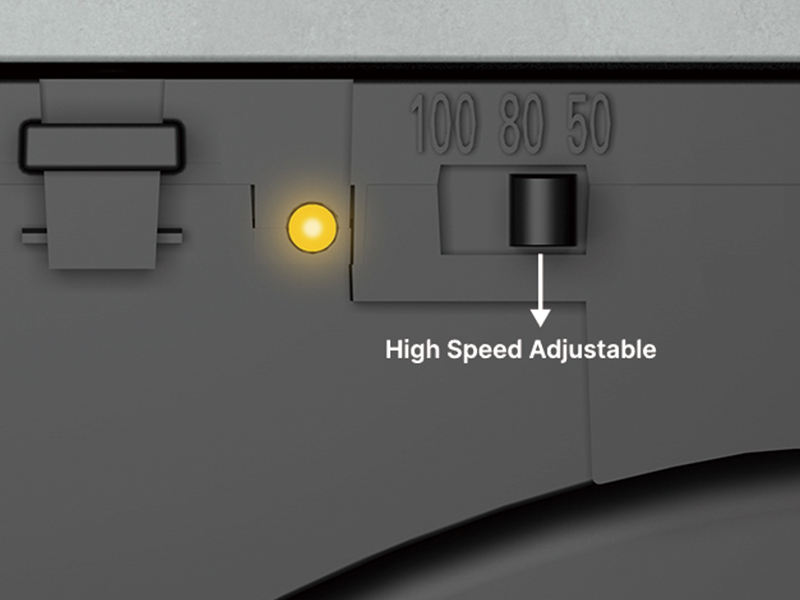

  • Green and amber LED indicators show continuous low speed and full speed modes
  • Annual energy cost for 24/7 operation is approximately $6.21* (@50 CFM), $9.80* (@80 CFM), $14.94* (@100 CFM)
    • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary.
The ventilation fan shall be the Delta Breez model SLM50-100D, qualified under ENERGY STAR® and equipped with a high-efficiency brushless DC motor designed for continuous operation for a minimum of 70,000 hours. The fan shall deliver an airflow of 100 CFM with a maximum sound level of 0.9 sones at 0.1" static pressure, as certified by the Home Ventilating Institute (HVI). Power consumption shall not exceed 12.5 watts, providing an efficiency rating of 8.0 CFM/W at 0.1" static pressure. The unit shall include motor lock protection and feature a self-compensating motor speed to maintain the specified airflow under varying static pressure conditions. The fan shall be UL and cUL listed for use in tub/shower enclosures when connected to a GFCI-protected branch circuit.

SLM50-100D - 50/80/100 CFM Fan with Dual Speed and High Speed Adjustable

Fan Speed Continuous Low Speed Full Speed
Static Pressure (inches w.g.) 0.1 0.25 0.375 0.1 0.25 0.375 0.1 0.25 0.375 0.1 0.25 0.375 0.1 0.25 0.375
Air Flow (CFM) 30 30 30 50 50 50 50 50 50 80 80 80 100 100 100
Sones <0.3 0.6 - <0.3 0.7 - <0.3 0.7 - 0.4 1.0 - 0.9 1.4 -
Power Consumption (Watts) 3.8 7.6 9.8 5.2 8.2 12.0 5.2 8.2 12.0 8.2 12.8 17.2 12.5 17.4 22.1
Energy Efficiency (CFM/Watts) 7.8 3.9 3.0 9.6 6.1 4.2 9.6 6.1 4.2 9.7 6.2 4.6 8.0 5.7 4.5
Current (Amps) 0.6 Max
Power Rating (V/Hz) 120 / 60
Download Installation & Operating Manual
Download Submittal Sheet

Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.

Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.

Download Revit File
