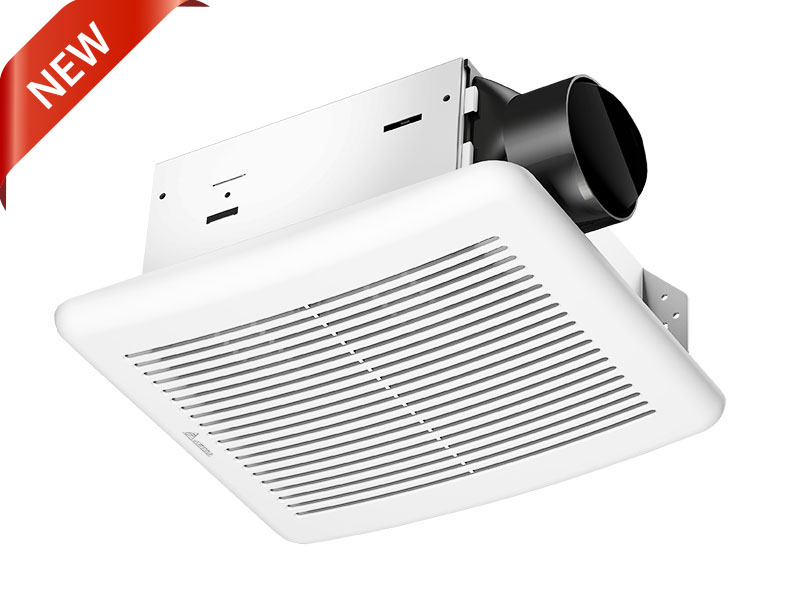

BreezSlim Ventilation Fans - SLM70D2 - 70 CFM with Dual Speed (coming soon!)
Home / Products / Slim Series / SLM70D2
- ENERGY STAR® Certified: Powered by advanced brushless DC motor technology for superior energy savings
- Quiet Operation: Operates at just 1.1 sones, ideal for quiet bathroom ventilation
- Ceiling & Wall Mount Options: UL listed for flexible installation

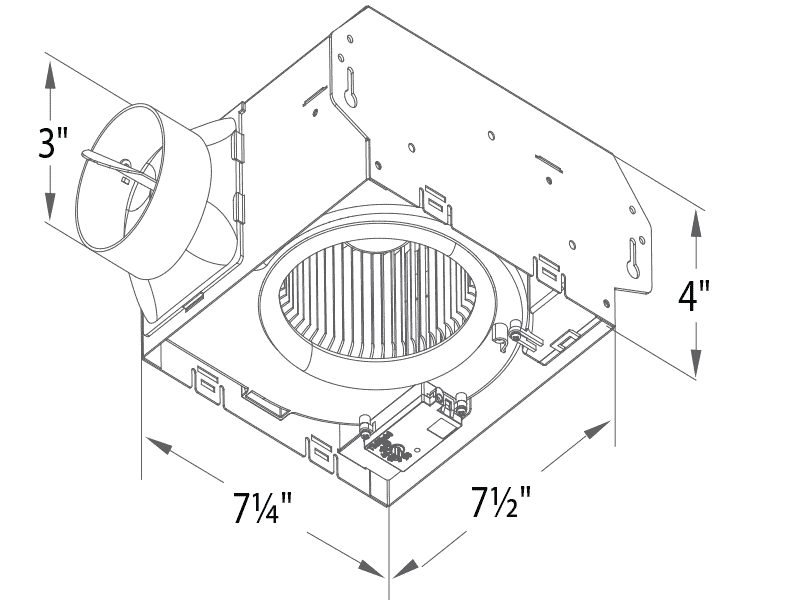

- Smallest Bathroom Fan Available: Compact size: 7¼" x 7½", perfect for small bathrooms and tight spaces
- Easy Retrofit & Replacement: Designed for quick upgrades of older bath fans.
- Adjustable Delay Timer: SLM70D2 Delay time preset positions (0.5, 5, 10, 15, 30, or 60 minutes).
- Smart Airflow Control: After user-adjustable time delay has elapsed, the fan will automatically return to the low-speed airflow (40CFM).
- Improved Airflow & Noise Performance: Optimized design enhances air circulation while maintaining low noise levels
- High Efficiency: Delivers approx. 6.1 CFM/Watt, reducing energy consumption
- LED Mode Indicators: LED Mode indicators: Green LED for low speed(40CFM), amber LED for full speed(70CFM).
- Low Annual Energy Cost: Estimated $11.88/year for 24/7 operation* *Based on U.S. average electricity rates and HVI lab testing. Actual costs may vary.
Compact and Energy-Efficient Exhaust Fan
Weighing in at less than 5 lbs., the powerful yet compact Delta BreezSlim sets the bar for performance in the popular small fan size of 7.5" x 7.25" x 3.94" . Operating at 1.1 sone, this quiet fan features Delta’s super reliable DC brushless motor, an LED indicator light so you know it’s running, and a modern grille design. Perfect for retrofit into an existing space or for ceiling mount or wall mount installation (UL listed for both) into your next multifamily or single-family project. BreezSlim breaks the mold of the everyday bathroom exhaust fan.
Weighing in at less than 5 lbs., the powerful yet compact Delta BreezSlim sets the bar for performance in the popular small fan size of 7.5" x 7.25" x 3.94" . Operating at 1.1 sone, this quiet fan features Delta’s super reliable DC brushless motor, an LED indicator light so you know it’s running, and a modern grille design. Perfect for retrofit into an existing space or for ceiling mount or wall mount installation (UL listed for both) into your next multifamily or single-family project. BreezSlim breaks the mold of the everyday bathroom exhaust fan.

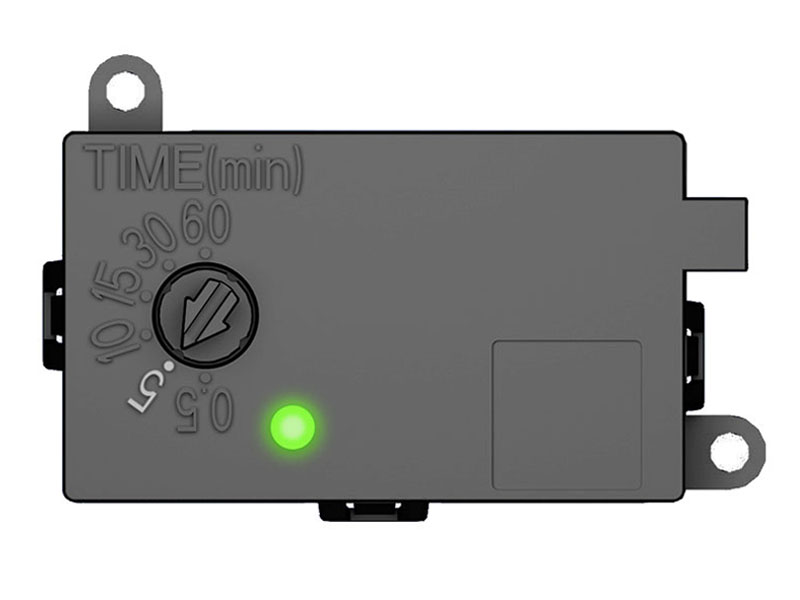

- Low Speed Mode: Turn POWER switch ON, MODE switch OFF – fan runs at low speed (green LED, 40CFM)

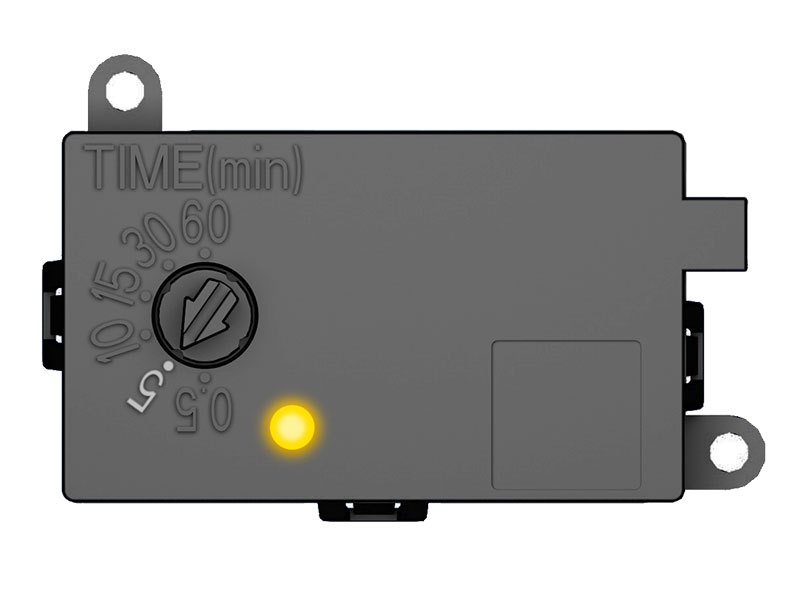

- Full Speed Mode with Delay: Turn POWER & MODE switch ON – fan runs at full speed (amber LED, 70CFM). When MODE switch is turned OFF, fan stays at full speed for the user-adjustable time (default: 5 min), then automatically switches to low speed (green LED , 40CFM)
SLM70D2 - 70 CFM with Dual Speed Exhaust Fan (3" Duct Standard)
| Fan Speed | Low Speed | Full Speed | ||
| Static Pressure (inches w.g.) | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 40 | 25 | 70 | 60 |
| Sones | 0.3 | 0.8 | 1.1 | 1.3 |
| Power Consumption (Watts) | 4.0 | 5.3 | 11.3 | 12.0 |
| Energy Efficiency (CFM/Watts) | 10.0 | 4.7 | 6.1 | 5.0 |
| Current (Amps) | 0.22 Max | |||
| Power Rating (V/Hz) | 120 / 60 | |||
