Introducing the VEB165S: Smarter ERV for Healthier Living.
The Delta Breez VEB165S is a high-efficiency Energy Recovery Ventilator designed for modern homes seeking intelligent, quiet, and energy-saving ventilation. With dual ECM motors and an integrated MERV 13 filter, it delivers superior indoor air quality while recovering up to 90% of sensible energy — reducing HVAC loads and lowering utility bills.
Features:
Features:
- Compact design: 11 ⅕” depth (285 mm) and 46 lbs (20.8 kg) makes for easy installation in tight spaces
- Motorized damper: Create a better seal against air leakage into the house when ERV is off
- 165 CFM Max Airflow: Adjustable from 30–165 CFM to match your home’s ventilation needs
- Digital Controller: Individual SA/EA airflow settings for a quick easily balanced ventilation system
- Healthier air: MERV13 filter included
- High-Efficiency: Included MERV13 filter for higher filtration efficiency and 90% SRE to maintain comfortable temperatures

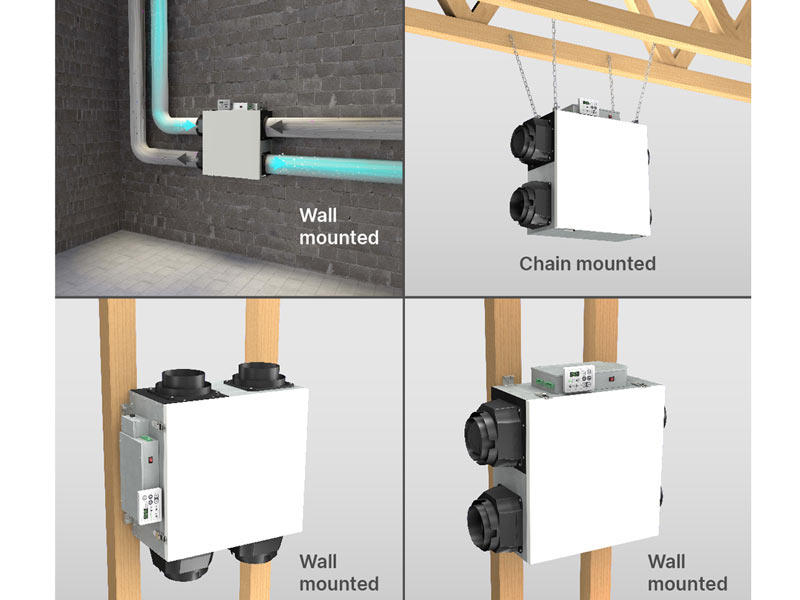

- Flexible Installation Options: Wall mount, vertical mount and chain mount
- Flexible power connection design: Equipped with standard power cord and an optional hard-wiring design, allowing flexible installation and easy replacement
- HVAC Interlock & Removable Wiring Block: Seamlessly integrates with your heating/cooling system
- Fault Indicator Display (FID):Complies with California Title 24 for smart home compliance
- Built-in FID (Fault Indicator Display): Alerts for filter maintenance
- Can be Interlocked with HVAC system
- Run time setting function
- Multi-speeds offer continuous ventilation
Reliable Performance & Smart Engineering
The Delta BreezFresh VEB165S is engineered for long-lasting, energy-efficient ventilation. Its ECM motor is designed to run continuously for a minimum of 60,000 hours, delivering consistent airflow ranging from 30 to 165 to meet various ventilation needs.
The unit’s insulated housing helps minimize condensation and reduce operational noise, making it ideal for quiet indoor environments.

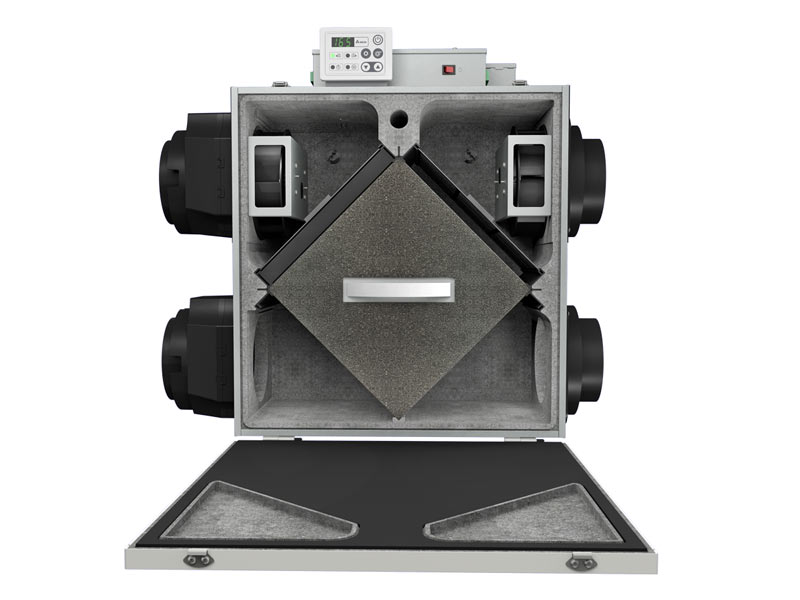

Equipped with a high-performance thermal exchange core, the VEB165S maximizes heat recovery while maintaining fresh air circulation.
For enhanced indoor air quality, the system includes a MERV 13 filter, which captures fine particles such as pollen, dust, and mold spores. This superior filtration is often required by building codes and recommended by indoor air quality (IAQ) programs.
The ERV also features interlock control, allowing it to be hardwired to your HVAC system for synchronized operation and improved energy efficiency.
The Delta BreezFresh VEB165S is engineered for long-lasting, energy-efficient ventilation. Its ECM motor is designed to run continuously for a minimum of 60,000 hours, delivering consistent airflow ranging from 30 to 165 to meet various ventilation needs.
The unit’s insulated housing helps minimize condensation and reduce operational noise, making it ideal for quiet indoor environments.
Equipped with a high-performance thermal exchange core, the VEB165S maximizes heat recovery while maintaining fresh air circulation.
For enhanced indoor air quality, the system includes a MERV 13 filter, which captures fine particles such as pollen, dust, and mold spores. This superior filtration is often required by building codes and recommended by indoor air quality (IAQ) programs.
The ERV also features interlock control, allowing it to be hardwired to your HVAC system for synchronized operation and improved energy efficiency.
| BreezFresh ERV | Model No. VEB165S |
| Length | 21 1⁄6” (537 mm) |
| Width | 22 1⁄4” (564 mm) |
| Height | 11 1⁄5” (285 mm) |
| Weight | 46 lbs (20.8 kg) |
| Operating temperature | -22oF to 104oF (-30°C to 40°C) |
VEB165S Delta Energy Recovery Ventilator
Airflow Performance
| Inch A.q. (Pa) | 0.2 (50) | 0.4 (100) | 0.6 (150) | 0.8 (200) | 1.0 (250) | 1.2 (300) |
| Net supply airflow CFM (L/s) | 184 (87) | 165 (78) | 146 (69) | 125 (59) | 97 (46) | 68 (32) |
| Engineering design and specifications to change without notice. | ||||||
Thermal Performance
| Temp Mode | Supply Temp (Outside) | Net Airflow | Sensible Recovery Efficiency | Adjusted Sensible Recovery Efficiency | Total Recovery Efficiency | Adjusted Total Recovery Efficiency | Latent Recovery / Moisture Transfer | Power Consumed |
| Heating mode | 32oF (0oC) | 36 CFM (17 L/s) | 90% | 94% | - | - | 0.85 | 18W |
| Heating mode | 32oF (0oC) | 64 CFM (30 L/s) | 84% | 87% | - | - | 0.74 | 27W |
| Heating mode | 32oF (0oC) | 127 CFM (60 L/s)) | 75% | 78% | - | - | 0.61 | 65W |
| Heating mode | -13oF (-25oC) | 61 CFM (29 L/s) | 61% | 62% | - | - | 0.56 | 27W |
| Cooling mode | 95oF (35oC) | 36 CFM (17 L/s) | - | - | 81% | 84% | 0.81 | 19W |
| Cooling mode | 95oF (35oC) | 64 CFM (30 L/s) | - | - | 73% | 75% | 0.71 | 30W |
| Engineering design and specifications to change without notice. | ||||||||
