- ENERGY STAR® qualified with innovative brushless DC motor technology
- Whisper-quiet operation: 0.5 sones at 110 CFM @ 0.1” SP
- Adjustable full-speed settings: 50 CFM, 80 CFM, or 110 CFM
- Constant airflow design maintains up to 0.4” SP at 110 CFM
- High energy efficiency: 8.5 CFM/Watt at 110 CFM

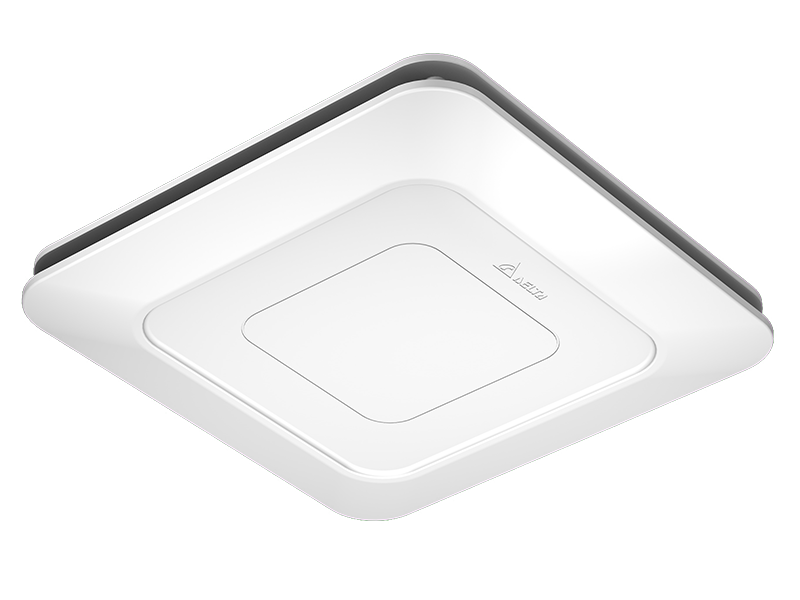

- Modern flat cover for a clean, contemporary appearance
- LED indicator light glows green when power is on
- Low annual energy cost for 24/7 operation: approximately $6.60* (50 CFM), $11.00* (80 CFM), or $19.20* (110 CFM) *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

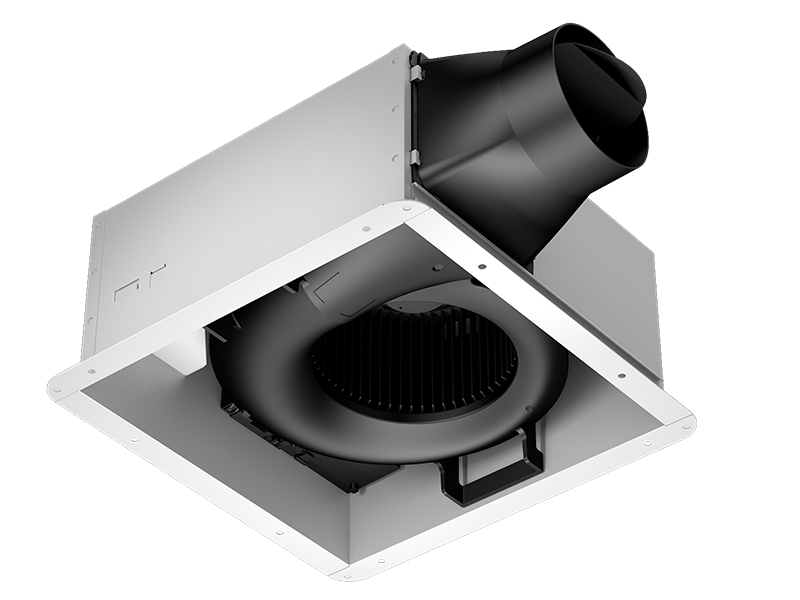

Innovative brushless DC motor design for long life, low noise, and low power consumption
The ELT50–110 has earned ENERGY STAR® qualification and features a brushless DC motor engineered for continuous operation with a minimum life expectancy of 70,000 hours. It delivers an airflow rating of 110 CFM with a sound level of just 0.5 sones at 0.1 in. static pressure, as certified by the Home Ventilating Institute (HVI). The fan consumes just 13 watts of power and achieves an efficiency rating of 8.5 CFM/Watt at 0.1" static pressure. static pressure. Additional features include motor lock protection and self‑compensating motor speed, which helps maintain the intended airflow when encountering changes in static pressure. The ELT50–110 is UL and cUL listed for use in tub and shower enclosures when connected to GFCI-protected branch circuit wiring.

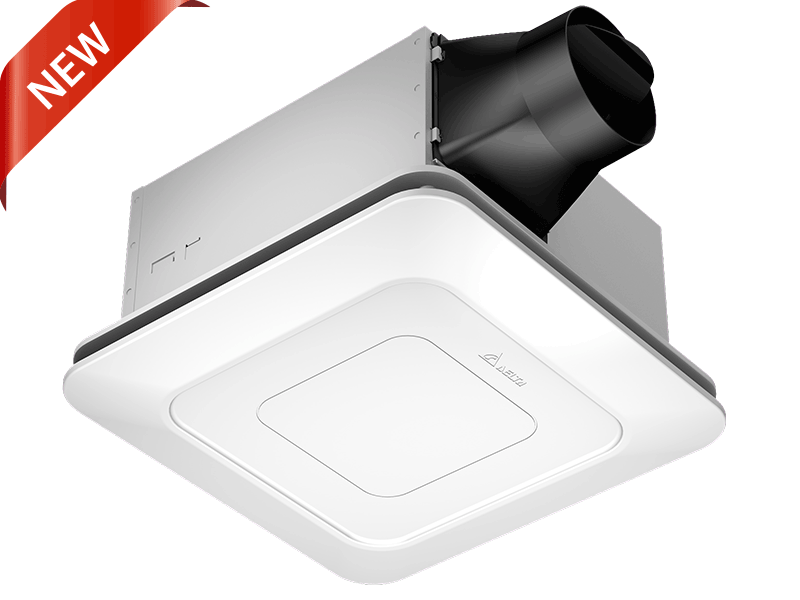

ELT50-110 – 50/80/110 CFM Exhaust Fan

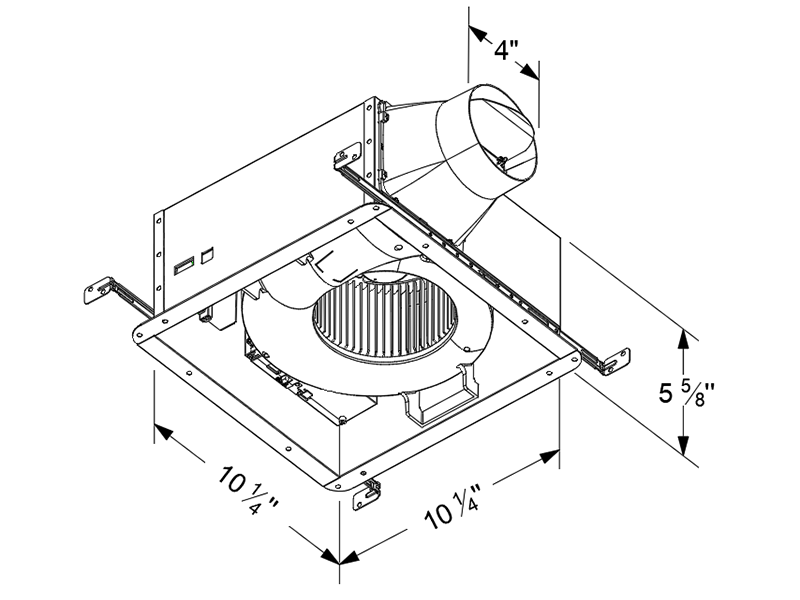

| 4" Duct Standard | ||||||
| Static Pressure (inches w.g.) | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 50 | 50 | 80 | 80 | 110 | 110 |
| Sones | < 0.3 | 0.4 | < 0.3 | 0.7 | 0.5 | 1 |
| Power Consumption (Watts) | 4.5 | 7.5 | 7.5 | 12.5 | 13 | 19.5 |
| Energy Efficiency (CFM/Watts) | 11.1 | 6.7 | 10.7 | 6.4 | 8.5 | 5.6 |
| Current (Amps) | 0.45 Max. | |||||
| Power Rating (V/Hz) | 120 / 60 | |||||
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
