- ENERGY STAR® qualified with innovative brushless DC motor technology
- Whisper-quiet operation: 0.5 sones at 110 CFM @ 0.1" SP
- Adjustable full-speed settings: 50 CFM, 80 CFM, or 110 CFM

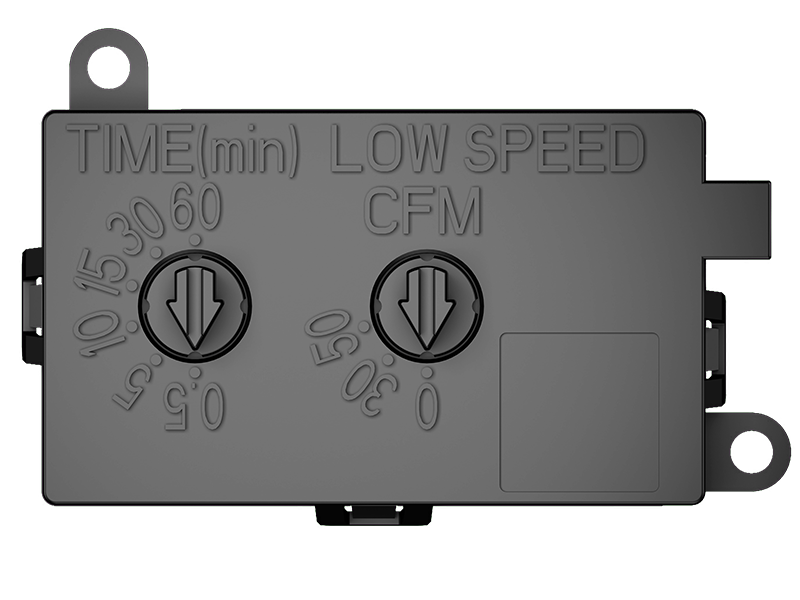

- Allows operation in either full-speed mode or continuous low-speed mode via manual switch
- In continuous low-speed mode, the fan runs continuously at a user-preset level (0, 30, or 50 CFM)
- Preset delay time options: 0.5, 5, 10, 15, 30, or 60 minutes
- High energy efficiency: 8.5 CFM/Watt at 110 CFM

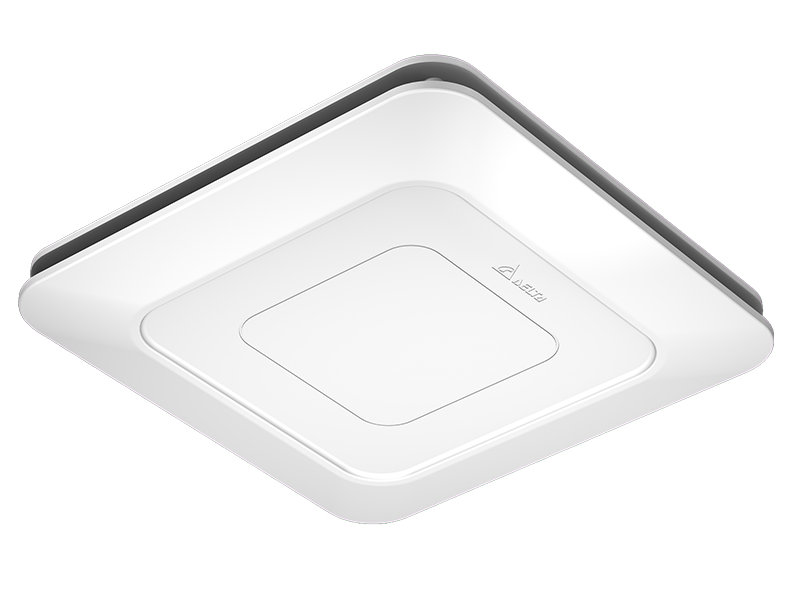

- Flat cover enhances a modern aesthetic

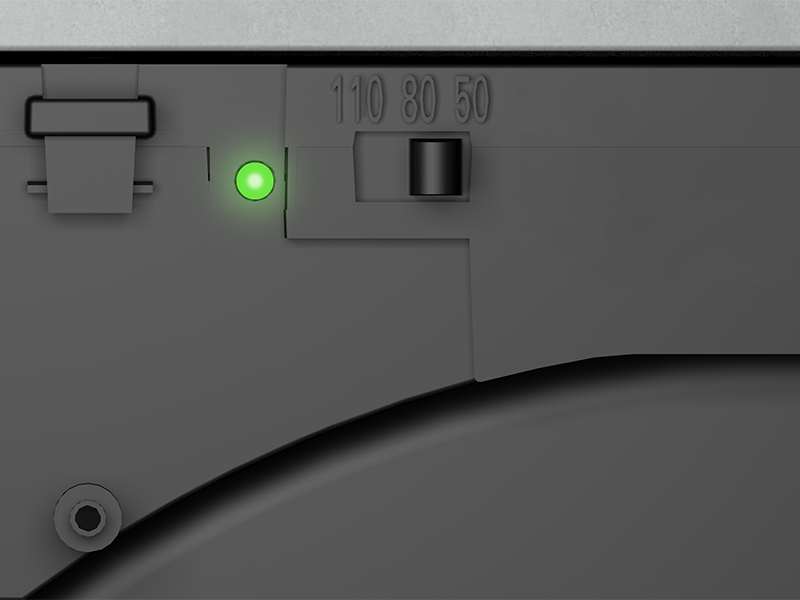

- Green and amber LED indicator lights display continuous low-speed and full-speed modes
- Low annual energy cost for 24/7 operation: approximately $6.60* (50 CFM), $11.00* (80 CFM), or $19.20* (110 CFM) *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

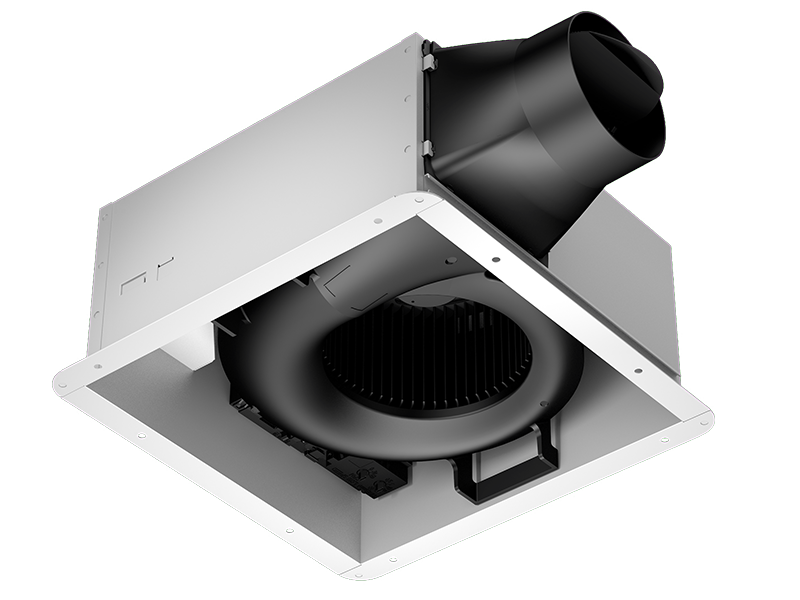

Innovative brushless DC motor design for long life, low noise, and low power consumption
The ELT50-110D is ENERGY STAR® qualified and features a brushless DC motor engineered for continuous operation with a minimum lifespan of 70,000 hours. It delivers an airflow of 110 CFM and operates at a quiet 0.5 sones at 0.1" static pressure, as certified by the Home Ventilating Institute (HVI). The fan consumes just 13 watts of power and achieves an efficiency rating of 8.5 CFM/Watt at 0.1" static pressure. Additional features include motor lock protection and a self-compensating motor speed function that maintains the intended airflow when encountering static pressure. The ELT50-110D is UL and cUL listed and approved for use in tub and shower enclosures when connected to a GFCI-protected branch circuit.

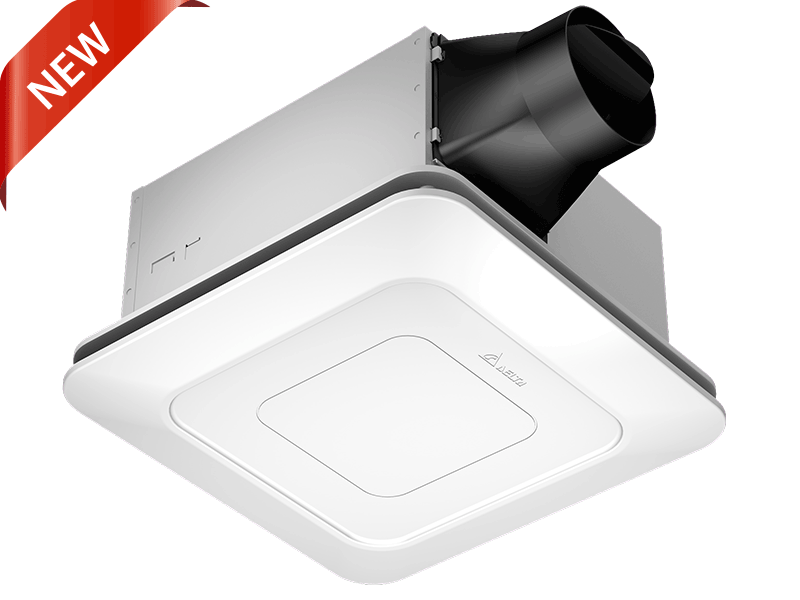

ELT50-110D – 50/80/110 CFM Exhaust Fan
| 4" Duct Standard | ||||||||||
| Fan Speed | Continuous Low Speed | Full Speed | ||||||||
| Static Pressure | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 30 | 30 | 50 | 50 | 50 | 50 | 80 | 80 | 110 | 110 |
| Sones | <0.3 | <0.3 | <0.3 | 0.4 | <0.3 | 0.4 | <0.3 | 0.7 | 0.5 | 1 |
| Power (W) | 4 | 6 | 4.5 | 7.5 | 4.5 | 7.5 | 7.5 | 12.5 | 13 | 19.5 |
| Energy Efficiency (CFM/Watts) | 7.5 | 5 | 11.1 | 6.7 | 11.1 | 6.7 | 10.7 | 6.4 | 8.5 | 5.6 |
| Current (Amps) | 0.45 Max. | |||||||||
| Power Rating (V/Hz) | 120 / 60 | |||||||||
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
