- ENERGY STAR® qualified with innovative brushless DC motor technology
- Whisper-quiet operation: 0.5 sones at 110 CFM @ 0.1" SP
- Adjustable full-speed settings: 50 CFM, 80 CFM, or 110 CFM
- Allows the fan to operate in full‑speed mode or continuous low-speed mode via a manual switch
- In humidity control mode, when humidity is above the user‑adjustable set point, the fan runs at full speed. When humidity is below the set point, the fan runs continuously at a preset lower level (0, 30, or 50 CFM)
- Adjustable humidity set points range from approximately 50% to 80% RH
- High energy efficiency: 8.5 CFM/Watt at 110 CFM
- Flat cover enhances a modern aesthetic
- Blue and amber LED indicator lights display humidity mode or full-speed modes
- Low annual energy cost for 24/7 operation: approximately $6.60* (50 CFM), $11.00* (80 CFM), or $19.20* (110 CFM) *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary
Innovative brushless DC motor design for long life, low noise, and low power consumption
The ELT50-110H has earned ENERGY STAR® qualification and features a Brushless DC Motor engineered for continuous operation with a minimum lifespan of 70,000 hours. It delivers an airflow rating of 110 CFM and a quiet operation level of 0.5 sones at 0.1" static pressure, as certified by the Home Ventilating Institute (HVI). The fan operates with a power consumption of 13 watts and achieves an efficiency rating of 8.5 CFM per watt at 0.1" static pressure. Additional features include motor lock protection and self-compensating motor speed, which maintains intended airflow under varying static pressure conditions. The ELT50-110H is UL and cUL listed for use in tub and shower enclosures when connected to GFCI-protected branch circuit wiring.

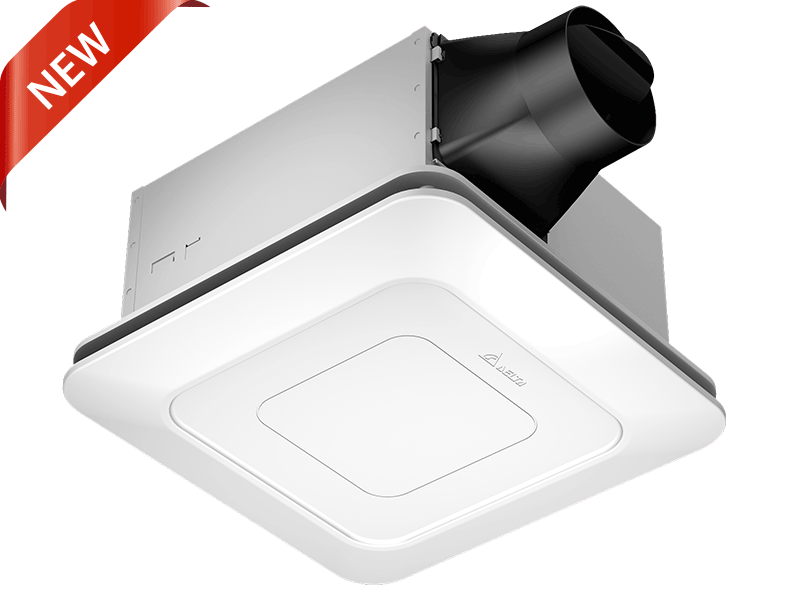

ELT50-110H – 50/80/110 CFM Exhaust Fan
| 4" Duct Standard | ||||||||||
| Fan Speed | Continuous Low Speed | Full Speed | ||||||||
| Static Pressure | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 30 | 30 | 50 | 50 | 50 | 50 | 80 | 80 | 110 | 110 |
| Sones | <0.3 | <0.3 | <0.3 | 0.4 | <0.3 | 0.4 | <0.3 | 0.7 | 0.5 | 1 |
| Power (W) | 4 | 6 | 4.5 | 7.5 | 4.5 | 7.5 | 7.5 | 12.5 | 13 | 19.5 |
| Energy Efficiency (CFM/Watts) | 7.5 | 5 | 11.1 | 6.7 | 11.1 | 6.7 | 10.7 | 6.4 | 8.5 | 5.6 |
| Current (Amps) | 0.45 Max. | |||||||||
| Power Rating (V/Hz) | 120 / 60 | |||||||||
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
