- ENERGY STAR® qualified with innovative brushless DC motor technology
- Whisper-quiet operation: 0.5 sones at 110 CFM @ 0.1” SP
- Adjustable full-speed settings: 50 CFM, 80 CFM, or 110 CFM
- Constant airflow design maintains up to 0.4” SP at 110 CFM
- High energy efficiency: 8.5 CFM/Watt at 110 CFM
- Main light output: 13W dimmable LED delivering 1,000 lumens with 90 CRI for high color accuracy; includes a <1W night light
- Adjustable color temperatures: Selectable 2700K, 3000K, 3500K, 4000K, or 5000K to create the perfect ambiance
- LED indicator light glows green when power is on
- Low annual energy cost for 24/7 operation: approximately $6.60* (50 CFM), $10.30* (80 CFM), or $19.20* (110 CFM) *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

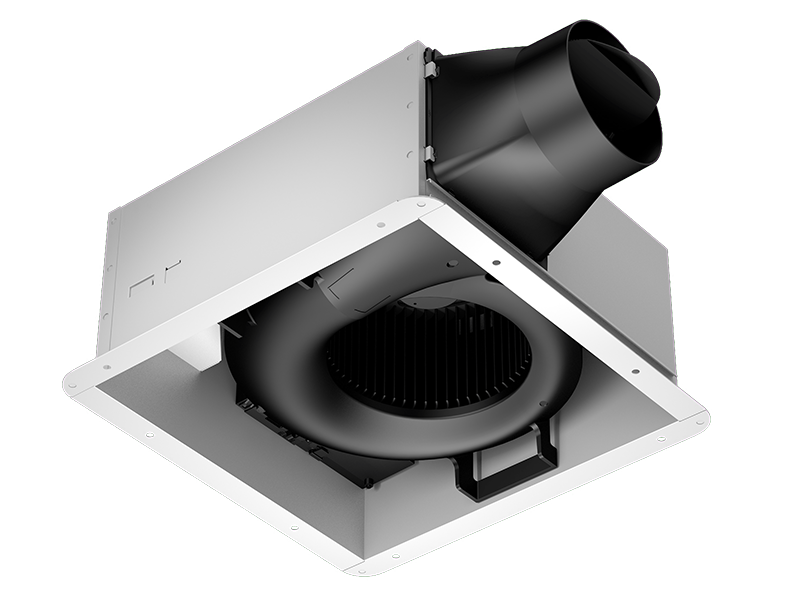

Innovative brushless DC motor design for long life, low noise, and low power consumption
The ELT50–110LED has earned ENERGY STAR® qualification and features a brushless DC motor engineered for continuous operation with a minimum life expectancy of 70,000 hours. It delivers an airflow rating of 110 CFM with a sound level of just 0.5 sones at 0.1 in. static pressure, as certified by the Home Ventilating Institute (HVI). The fan consumes just 13 watts of power and achieves an efficiency rating of 8.5 CFM/Watt at 0.1" static pressure. Additional features include motor lock protection and self-compensating motor speed, which helps maintain the intended airflow when encountering changes in static pressure. The ELT50–110LED is UL and cUL listed for use in tub and shower enclosures when connected to GFCI-protected branch circuit wiring.

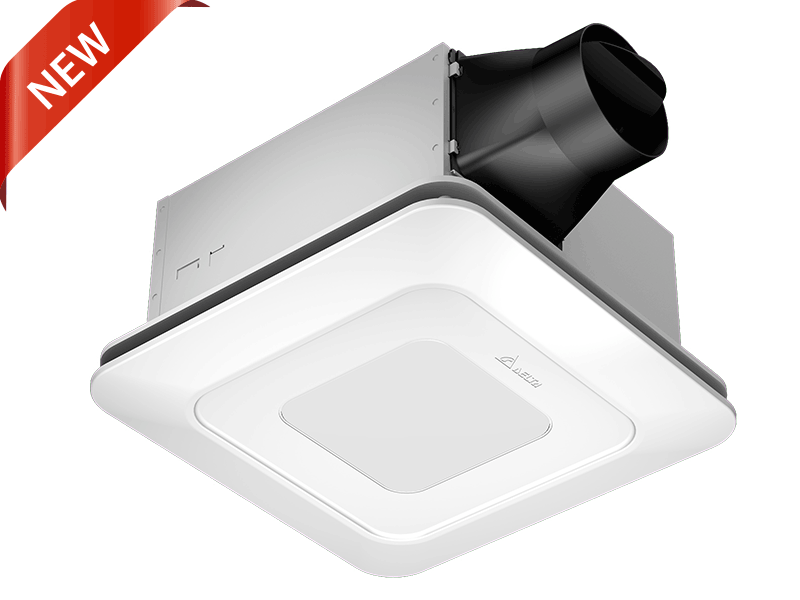

ELT50-110LED – 50/80/110 CFM Fan/Dimmable LED Light
| 4" Duct Standard | ||||||
| Static Pressure (inches w.g.) | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 50 | 50 | 80 | 80 | 110 | 110 |
| Sones | < 0.3 | 0.5 | < 0.3 | 0.7 | 0.5 | 1.1 |
| Power Consumption (Watts) | 4.5 | 7.6 | 7 | 12.5 | 13 | 19 |
| Energy Efficiency (CFM/Watts) | 11.1 | 6.6 | 11.4 | 6.4 | 8.5 | 5.8 |
| Current (Amps) | 0.57 Max. | |||||
| Power Rating (V/Hz) | 120 / 60 | |||||
| LED Light (Watts/Lumens) | 13 / 1000 | |||||
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
