Application:

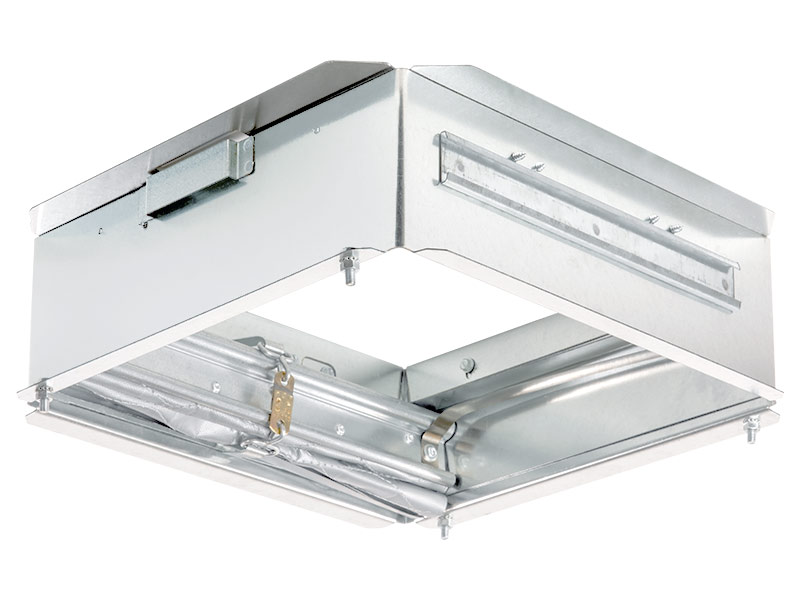

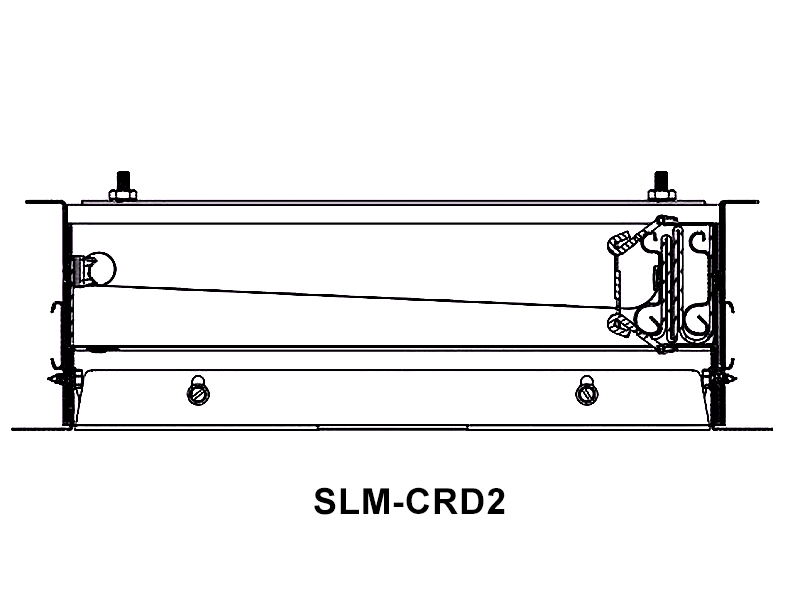

- The SLM-CRD2 Ceiling Radiation Damper uses a folded curtain-style blade to provide point-of-origin radiant heat control in ventilation systems. It is designed for horizontal installation in fire-rated floor/ceiling and roof/ceiling assemblies with ratings up to 3 hours
- Installation is valid for the following UL rated wood truss ceilings:
- Floor-Ceiling = L587 (Owned) Also found in the following floor-ceiling designs: L528, L558, L562, L563 L574, and L585
- Roof Ceiling = P556 (Owned) Also found in the following roof-ceiling designs: P533, P544, P545, P547, and P580
- Intended for installation with the following UL Listed Delta Electronic Fan Models SLM50-100, SLM50-100LED, SLM50-100H, SLM50-100D, ELT50-110, ELT50-110D, ELT50-110H, ELT50-110MH, ELT50-110DLED,ELT50-110HLED, ELT50-110MHLED, ELT50-110LED (for SLM series to use combustible installation need to purchase VFRU-21-13HB separately)
- Galvanized steel frame and sleeve
- 212°F fusible link

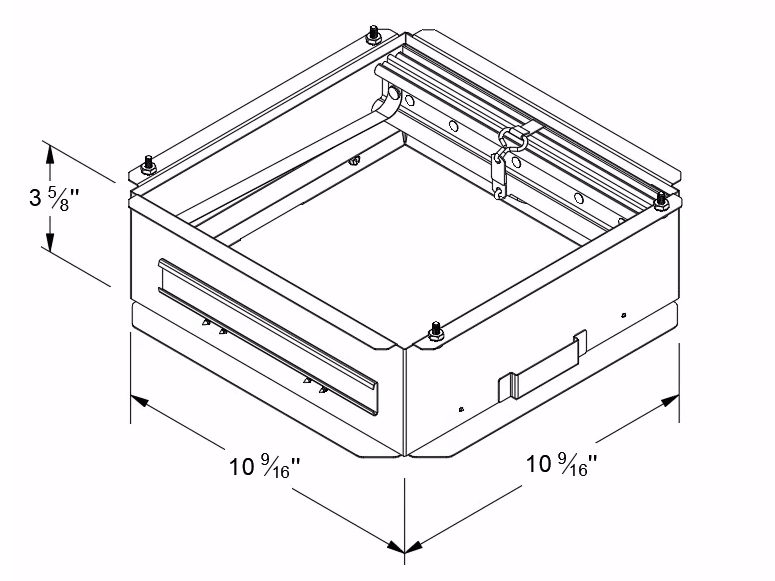

- Size: 109/16” x 109/16”
- High temperature, non-asbestos, reinforced fiber thermal fabric
SLM-CRD2 Ceiling Radiation Damper is UL and cUL listed and exceeds UL 555C requirements for use in 3-hour fire-rated assemblies.
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
