BreezSlim Ventilation Fans - SLM80-110D - 80/110 CFM Dual Speed Fan

Home / Products / Slim Series / SLM80-110D

SLM80-110D
  • SLM80-110D
  • SLM80-110D motor
  • SLM80-110D grille
  • SLM80-110D green LED indicator light
  • ELT80-110D Amber LED indicator light
  • SLM80-110D High Speed Adjustable
  • SLM80-110D knob
  • SLM80-110D

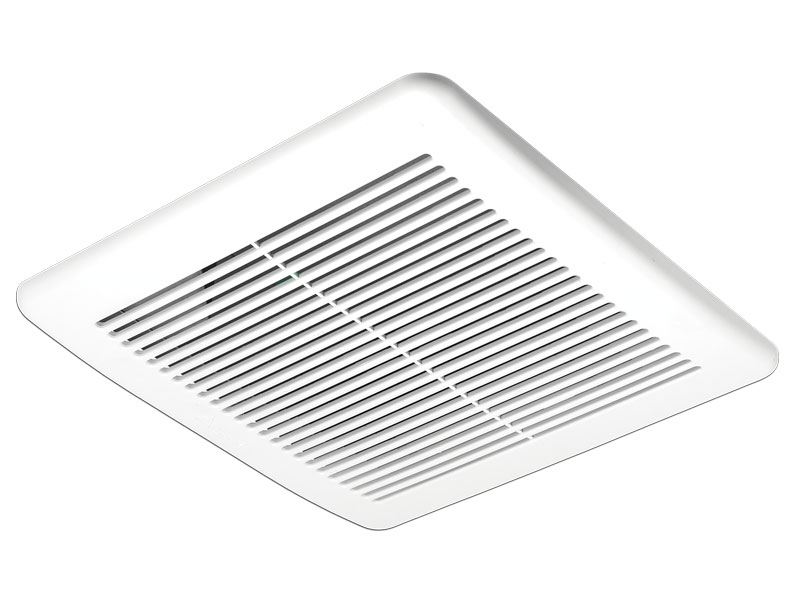

  • SLM80-110 grille
slim
  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • UL approved for ceiling and wall mount installation, and it can fit in a 4" wall
  • 4" Oval Duct
  • Perfectly quiet operation at 0.4 sones (80 CFM), 1.2 sones (110 CFM)
  • Adjustable high speed 80 CFM or 110 CFM
  • Energy efficiency at 9.4 CFM/Watt (80 CFM), 6.6 CFM/Watt (110 CFM)
  • Allows fan to operate in full speed mode or continuous low speed mode by manual switch
  • For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 50, 80 CFM)
  • Delay time preset positions (0.5, 5, 15, 30, 45, or 60 min)
  • Green and amber LED indicator lights show continuous low speed and full speed modes
  • Annual energy cost for 24/7 operation is approximately $7.88*
  • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary
  • energyefficient logo
  • HVI logo
  • UL logo
  • CA24 logo
  • ASI logo


Super Low Profile. Super Low Energy Consumption.
Delta BreezSlim SLM80-110D is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.2 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

SLM80-110D - 80/110 CFM Fan Dual Speed

Fan Speed Continuous Low Speed Full Speed
Static Pressure 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25
Air Flow (CFM) 50 50 80 80 80 80 110 110
Sones <0.3 0.8 0.4 1.0 0.4 1.0 1.2 1.5
Power (W) 6 9.5 8.5 14.5 8.5 14.5 16.5 24
Efficiency (CFM/Watts) 8.3 5.2 9.4 5.5 9.4 5.5 6.6 4.5
Current (Amps) 0.6 Max.
Power Rating (V/Hz) 120/60

Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.

Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.

Download Revit File
