BreezSlim Ventilation Fans - SLM80-110LED - 80/110 CFM Fan/Dimmable LED Light

Home / Products / Slim Series / SLM80-110LED

  • SLM80-110LED
  • SLM80-110 motor
  • SLM80-110LED grille
  • SLM80-110D green LED indicator light
  • SLM80-110LED High Speed Adjustable
  • SLM80-110LED
  • SLM80-110LED grille
  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • UL approved for ceiling and wall mount installation, and it can fit in a 4" wall
  • 4" Oval Duct
  • Perfectly quiet operation at 0.4 sones (80 CFM), 1.3 sones (110 CFM)
  • Adjustable high speed 80 CFM or 110 CFM
  • Energy efficiency at 8.8 CFM/Watt (80 CFM), 6.6 CFM/Watt (110 CFM)
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
  • Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy
  • LED indicator will be green when power is on
  • Annual energy cost for 24/7 operation is approximately $8.94* (80 CFM) or $17.35* (110 CFM)
  • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary
  • energyefficient logo
  • HVI qualified
  • UL qualified
  • CA24 qualified
  • ASI qualified
  • LED Dimmable light
  • the quietest fan, low noise

Super Low Profile. Super Low Energy Consumption.
Delta BreezSlim SLM80-110LED is suitable for ceiling or sidewall installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.3 sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt; fan will feature LED indicator running light and motor lock protection. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Download Spec Sheet

SLM80-110LED - 80/110 CFM Fan/Dimmable LED Light

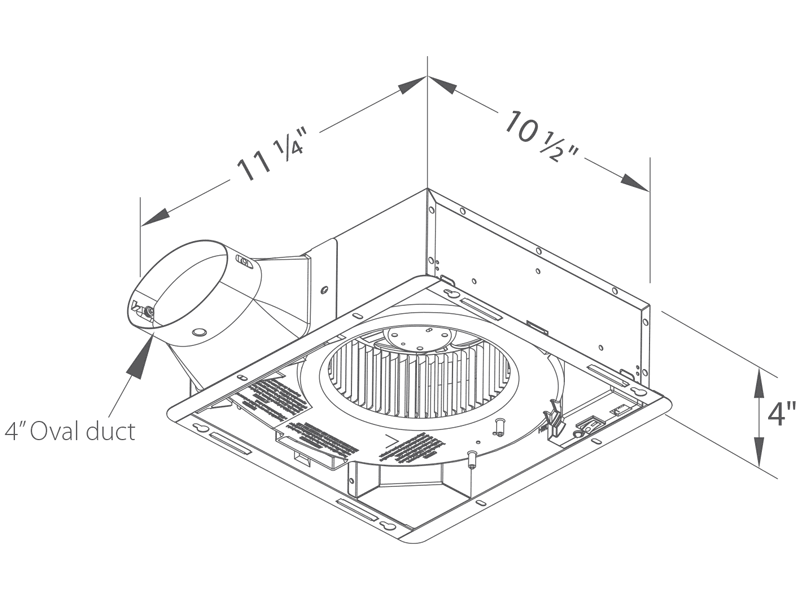

4" Oval Duct
Static Pressure (inches w.g.) 0.1 0.25 0.1 0.25
Air Flow (CFM) 80 80 110 106
Sones 0.4 1.1 1.3 1.5
Power Consumption (Watts) 9.0 14.5 16.5 24
Energy Efficiency (CFM/Watts) 8.8 5.5 6.6 4.4
Current (Amps) 0.6 Max
Power Rating (V/Hz) 120/60
Dimmable LED Light (Watts) 13
Project Pack Components Available SLMLED-A3 (housing)
and SLM80-110LED-B (motor and grille)

Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.

Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.

Download Revit File
