BreezElite ELT50–110DLED – Smart, Quiet, and Efficient Ventilation Fan / Dimmable LED Light

with Dual Speed and High Speed Adjustable 50/80/110 CFM (coming soon!)

Home / Products / Elite / ELT50–110DLED

ELT50–110DLED
  • ELT50–110DLED dual speed

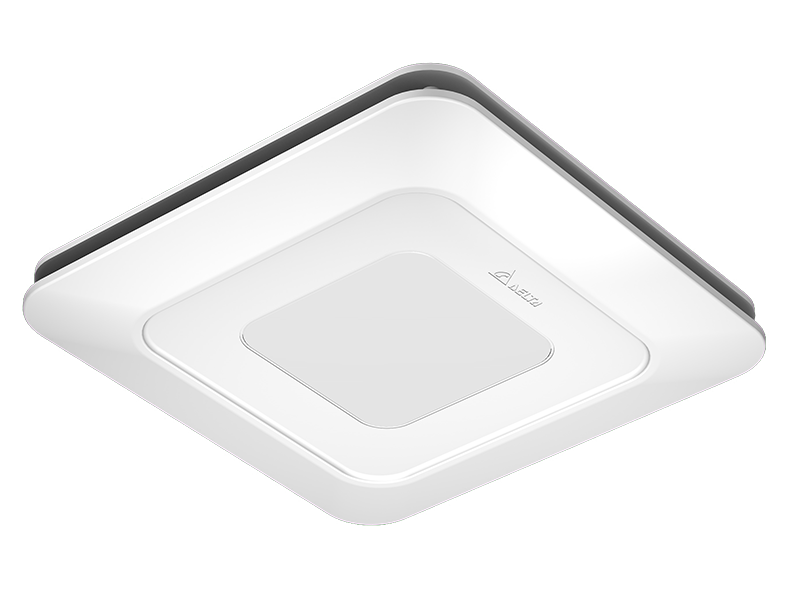

  • ELT50–110DLED grille
  • ELT50–110DLED Dual function
  • ELT50–110DLED Dual Speed Adjustable
  • ELT50–110DLED Green LED indicator light
  • ELT50–110DLED orange LED indicator light
  • ELT50–110DLED Dual function
  • ELT50–110DLED dimension

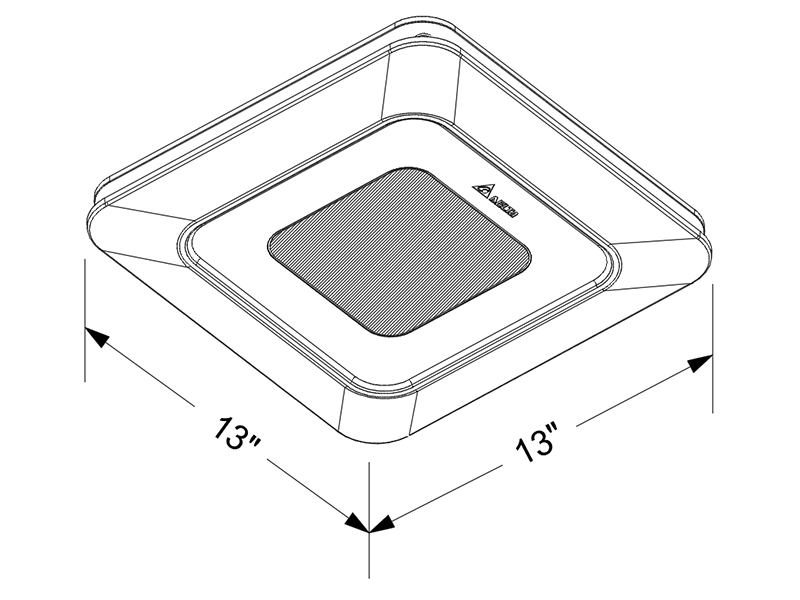

  • ELT50–110DLED drawing grille


  • energyefficient logo
  • HVI logo
  • UL logo
  • CA24 logo
  • ASI logo
  • the quietest fan, low noise
  • dual speed
  • LED dimmable light
Elite logo

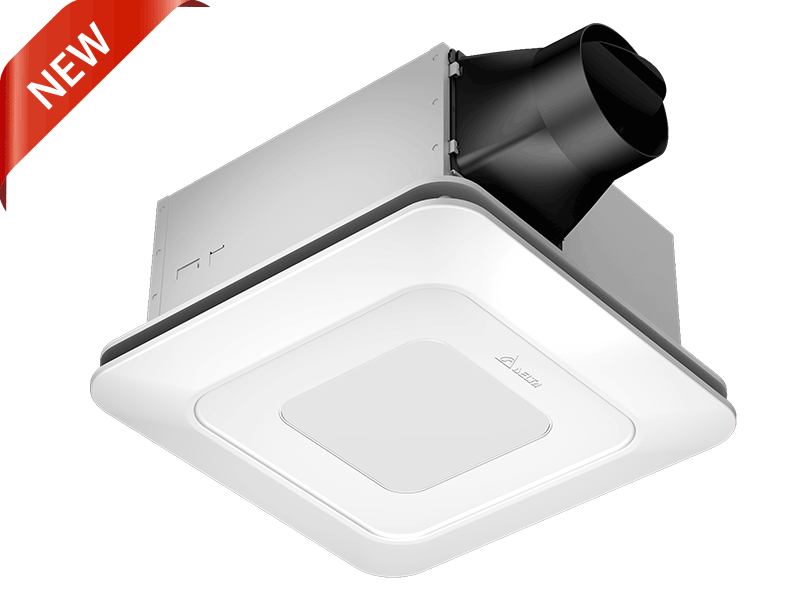

The Delta BreezElite ELT50–110DLED is an ENERGY STAR® qualified, dual-speed ventilation fan ideal for room-side installation. It features adjustable high-speed options, quiet and energy-efficient operation, and airflow ratings of 50, 80, or 110 CFM. The fan exceeds ENERGY STAR® certification requirements.

Features:
  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Whisper-quiet operation: 0.5 sones at 110 CFM @ 0.1" SP
  • Adjustable full-speed settings: 50 CFM, 80 CFM, or 110 CFM
  • Allows operation in either full-speed mode or continuous low-speed mode via manual switch
  • In continuous low-speed mode, the fan runs continuously at a user-preset level (0, 30, or 50 CFM)
  • Preset delay time options: 0.5, 5, 10, 15, 30, or 60 minutes
  • High energy efficiency: 8.5 CFM/Watt at 110 CFM
  • Main light output: 13W dimmable LED delivering 1,000 lumens with 90 CRI for high color accuracy; includes a <1W night light
  • Adjustable color temperatures: Selectable 2700K, 3000K, 3500K, 4000K, or 5000K to create the perfect ambiance
  • Green and amber LED indicator lights display continuous low-speed and full-speed modes
  • Low annual energy cost for 24/7 operation: approximately $6.60* (50 CFM), $10.30* (80 CFM), or $19.20* (110 CFM)
    • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

Innovative brushless DC motor design for long life, low noise, and low power consumption
The ELT50–110DLED is ENERGY STAR® qualified and features a brushless DC motor engineered for continuous operation with a minimum lifespan of 70,000 hours. It delivers an airflow of 110 CFM and operates at a quiet 0.5 sones at 0.1" static pressure, as certified by the Home Ventilating Institute (HVI). The fan consumes just 13 watts of power and achieves an efficiency rating of 8.5 CFM/Watt at 0.1" static pressure. Additional features include motor lock protection and a self-compensating motor speed function that maintains the intended airflow when encountering static pressure. The ELT50-110DLED is UL and cUL listed and approved for use in tub and shower enclosures when connected to a GFCI-protected branch circuit.

ELT50–110DLED – 50/80/110 CFM Exhaust Fan

4" Duct Standard
Fan Speed Continuous Low Speed Full Speed
Static Pressure 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25
Air Flow (CFM) 30 30 50 50 50 50 80 80 110 110
Sones 0.3 0.4 <0.3 0.5 <0.3 0.5 <0.3 0.7 0.5 1.1
Power (W) 3.5 6 4.5 7.6 4.5 7.6 7 12.5 13 19
Energy Efficiency (CFM/Watts) 8.6 5 11.1 6.6 11.1 6.6 11.4 6.4 8.5 5.8
Current (Amps) 0.57 Max.
Power Rating (V/Hz) 120 / 60
LED Light (Watts/Lumens) 13 / 1000
Download Installation & Operating Manual
Download Submittal Sheet

Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.

Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.

Download Revit File
